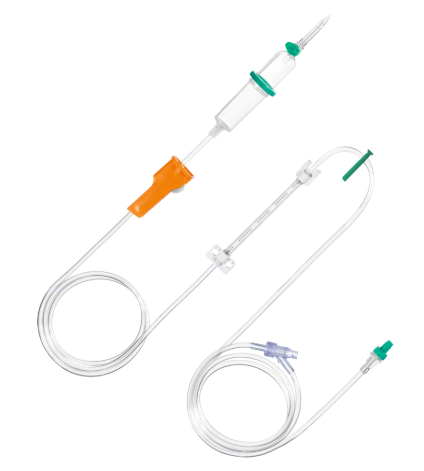

The Braun Infusomat® Space® Line Standard-Luer Lock is a dedicated intravenous (IV) administration set designed for precise medication and fluid delivery. It is engineered specifically for use with the Infusomat® Space, Infusomat® Spaceplus, and Infusomat® fm/fmS volumetric infusion pump systems.

Core Technical Specifications

According to official documentation from the B. Braun Product Catalog, a standard configuration (such as part number 8700036SP)

Total Tubing Length: 2500.00 mm (250 cm), with a length of 145 cm extending directly from the pump outlet.

Priming Volume: Approximately 27.48 ml.

Drop Rate: 20 drops/ml.

Fluid Filter: Integrated 15 µm pore size fluid filter located inside the drip chamber.

Connection Type: Standard male Luer-Lock connector to guarantee secure attachment to IV catheters or extensions.

Pump Segment: A specialized 100.00 mm silicone pump segment designed for long-term delivery accuracy and consistent pressure thresholds (max. 2.0 bar).
